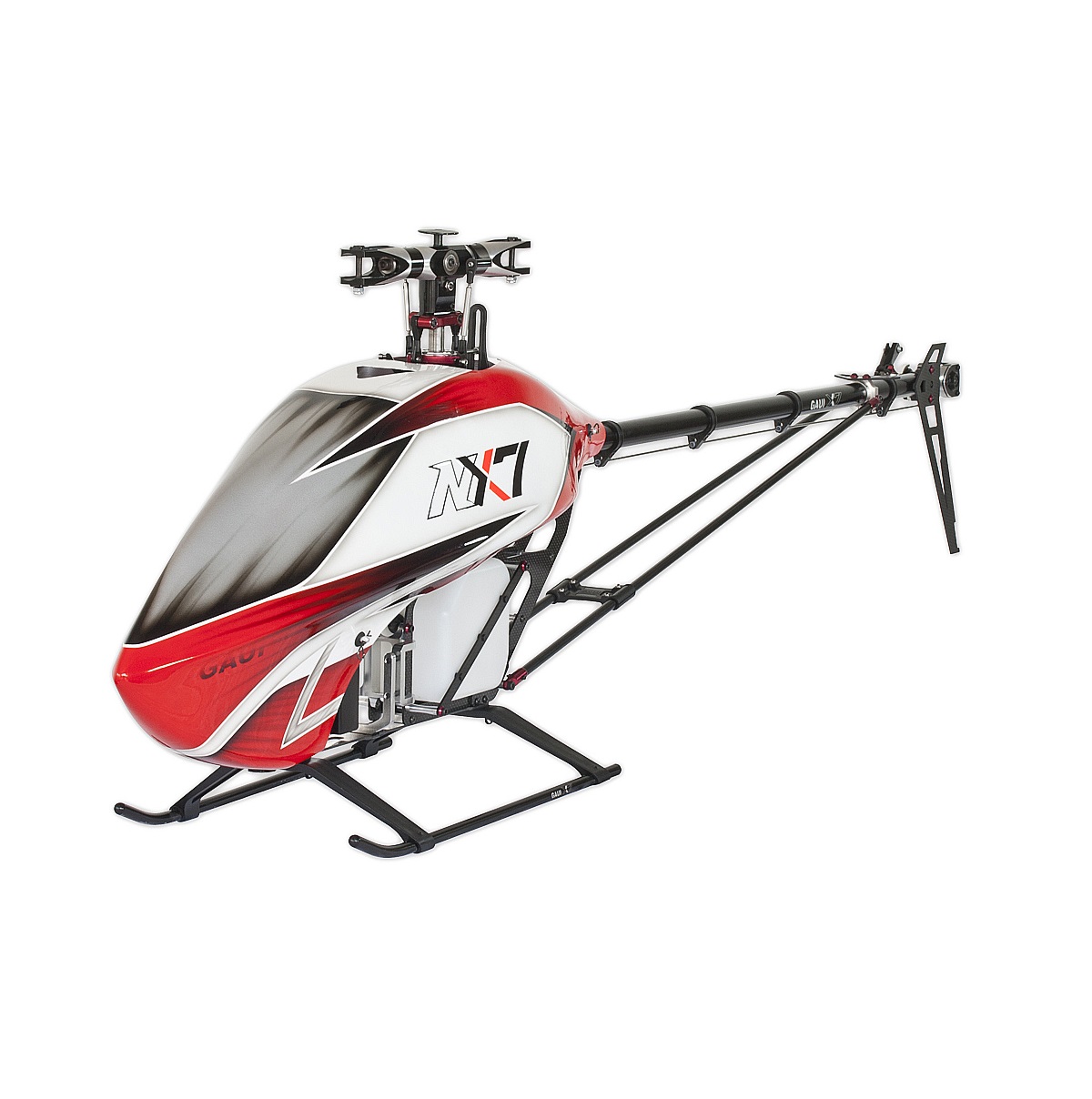

GAUI NX7 Formula Basic Kit

$ 92.02

Categories: Sport Coats,

Description NX7 Formula Basic Kit. Note: Main and tail blades not included Specifications: Overall Length (with Canopy): 1385 mm Main Rotation Diameter: 1560~1620 mm Main blade length: 690~720 mm Overall Height: 415 mm Overall Width: 200 mm Tail Blade Length: 105 mm Tail Rotation Diameter: 290 mm Flight duration: 5~6 minutes Tank capacity:660cc 22oz Weight:4400g Contents: NX7 Formula Basic Kit x1 Drive Gear Ratio 16T: 8.18:1:4.71 Required for operation Transmitter(7-channel or more, helicopter system) Receiver(7-channel or more) High speed/torque Servo x5 Engine starter x 1 Digital pitch gauge x 1 Fuel pump x 1 Engine fuel x 1 Muffler x 1 Engine x 1 CF main blades x1 CF Tail Rotor Blade x1 Flybarless System x1 Governor Sensor x 1 Suitable engine for Gaui NX7: O.S 91HZ-R 3C Speed O.S 105HZ O.S 105HZ-R O.S GT15HZ Gas Y.S 91SRX_Tareq Y.S 120SR Y.S 120SRX Tools and Equipment for Assembly 1.5 mm Hexagon Screw Driver 2 mm Hexagon Screw Driver 2.5 mm Hexagon Screw Driver 3 mm Hexagon Screw Driver Lubricant / one-way bearing grease Spring calipers, Needle-nosed pliers General thread lock Facebook Twitter Pinterest Stumbleupon Tumblr Email
