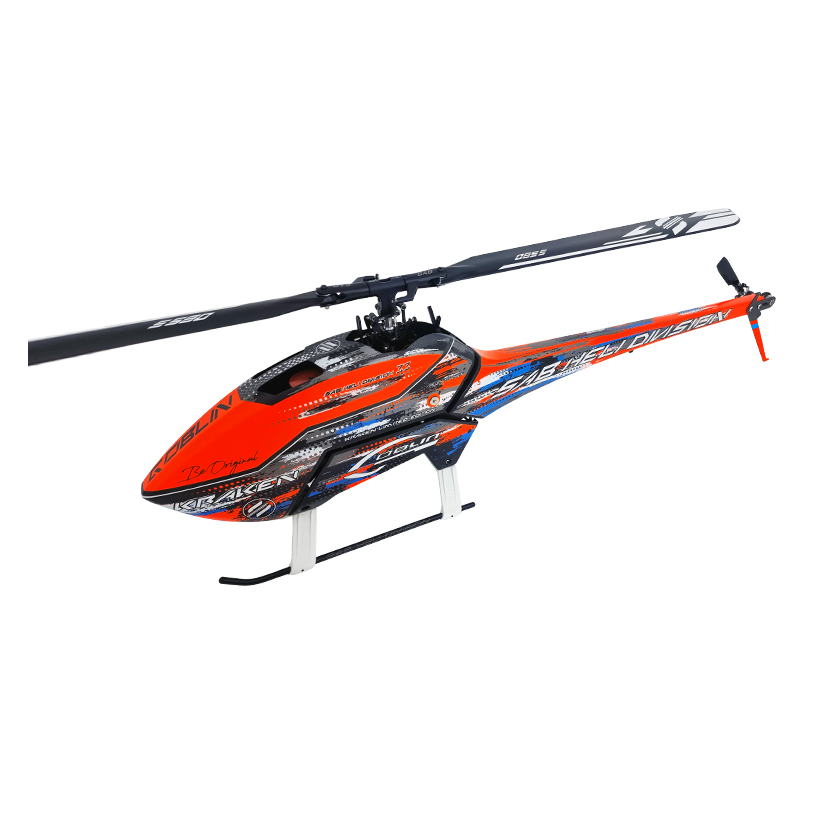

Kraken 580 Orange

$ 93.56

Categories: Sport Coats,

Description Main and tail blades included. Features: This is the first mid-size Goblin to accept up to 600mm rotor blades! The Kraken 580 works amazingly well with mini cyclic servo (torque over 8 Kg-cm). Kit includes servo mounts for mini-servos. Full size servo mounts available separately. The Kraken 580 utilizes the same battery trays as the Kraken 700. The motor pulleys are the already mass produced H0015-xx-S series. Minimum motor shaft length is 26mm (We recommend using a 6mm diameter motor shaft). The Xnova “B shaft” length is perfect! Specifications: AIRFRAME weight: 1760gr ( with blades, no battery, no electronics ) Main blade length: 550mm to 600mm Tail blade length: 95 to 105 mm Main rotor diameter: 1290 mm (with 580 mm blades included) Tail rotor diameter: 260 mm (with 95 mm tail blades included) Cyclic Servos: mini cyclic servo (torque over 8 Kg-cm). Kit includes servo mounts for mini-servos. Full size servo mounts available separately. Tail Servo: standard size 40mm. Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1) Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 ) Typical motor : 4025 series, 6S 1000-1200 Kv, 12S 500-600 Kv. Minimum motor shaft length is 26mm (We recommend using a 6mm diameter motor shaft) Typical speed controller: 6S 120-140 A, 12S 100-130A Battery size: 6S 5000/5800 mAh, 12S 2600/3200 mAh. Facebook Twitter Pinterest Stumbleupon Tumblr Email
