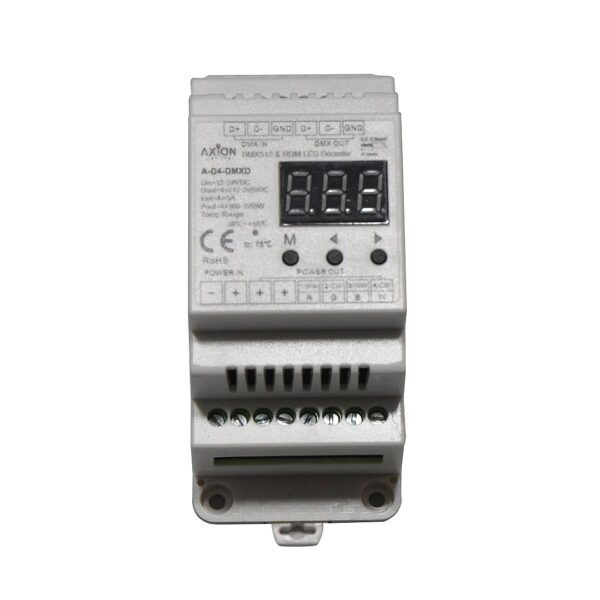

4 Channel DIN Rail DMX Decoder V2

$ 53.10

Categories: Sport Coats,

The Axion Lighting 4 Channel DMX Decoder offers a perfect way to control single color, tunable white, RGB, or RGBW fixtures. Now available in a DIN rail mount form factor!FeaturesFully compliant with the DMX512 standard protocol.No DIP switches! Use the integrated buttons and digital display to configure the DMX address.Supports RDM functionality for those DMX masters or controllers that take advantage of this enhanced protocol. 16 bit (65536 levels) or standard 8 bit (256) level selection.PWM dimming frequency selection: 500 / 1000 / 2000 / 4000 / 8000 / 16000 Hz options for reduced power noise and LED flickering.Logarithmic or linear dimming curve selectable.Over-heat, over-load and short circuit protection with automatic recovery.Automatic DMX signal detection helps to know if there are line issues. Default Output Level setting allows you to set the light level if the DMX signal is lost. CE, EMC, and LVD certified.5 year warrantyNOTE: When in 16-bit mode, the DMX addresses are cut in half, 512 -> 256 since it is now doubling the bit depth.
