12 Channel DMX Decoder V2

$ 91.20

Categories: Sport Coats,

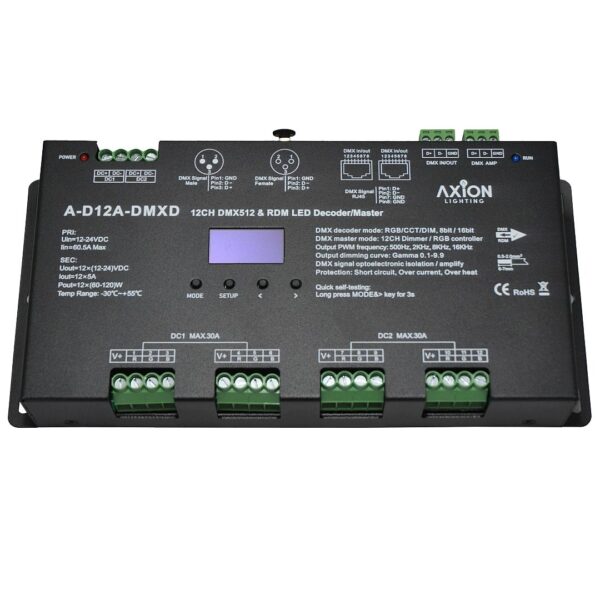

The Axion Lighting 12 Channel DMX Decoder offers a great way to control single color, tunable white, RGB, RGBW or even RGBWW fixtures. With 12 independent channels you can mix and match LED strips, recessed lights, or more to create multiple independent zones. FeaturesFully compliant with the DMX512 standard protocol.No DIP switches! Use the integrated buttons and OLED display to configure the DMX address and settings.Supports RDM functionality for those DMX masters or controllers that take advantage of this enhanced protocol. 16 bit (65536 levels) or standard 8 bit (256) level selection.PWM dimming frequency selection: 500 / 2000 / 8000 / 16000 Hz options for reduced power noise and LED flickering.Output dimming curve gamma value of 0.1 to 9.9 selectable.Over-heat, over-load and short circuit protection with automatic recovery.CE, EMC, and LVD certified.5 year warrantyDownload the Axion 12 Channel DMX Decoder CutsheetNOTE: When in 16-bit mode, the DMX addresses are cut in half, 512 -> 256 since it is now doubling the bit depth.
